What does service mesh have to do with security

Alan Yoshida

The problem

Kubernetes is not secure by default
How to manage certificates and identity ?
How to do the above without too much work in the developer side ?
How to limit lateral movement inside kubernetes ?

Network policy to manage identity ?

Not a real identity
In cloud native world, could have problems with dinamic ip association

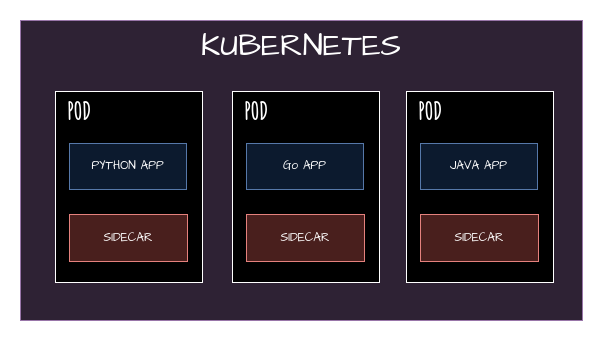

Introducing the sidecar Model

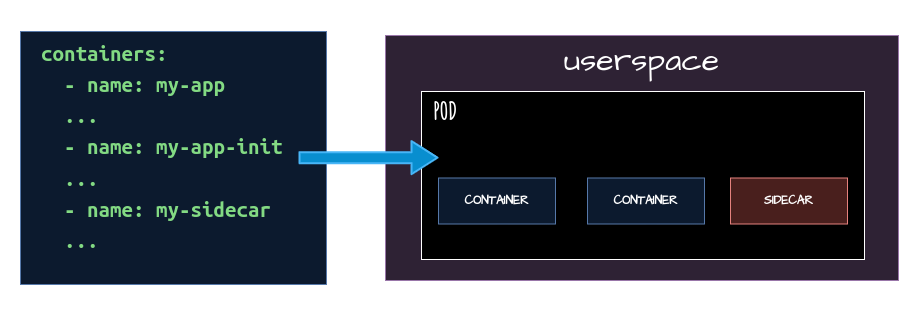

The sidecar Model has yaml

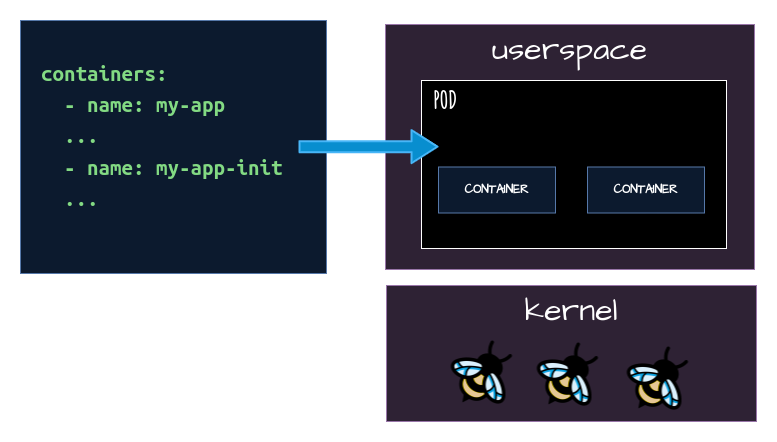

The sidecarless Model

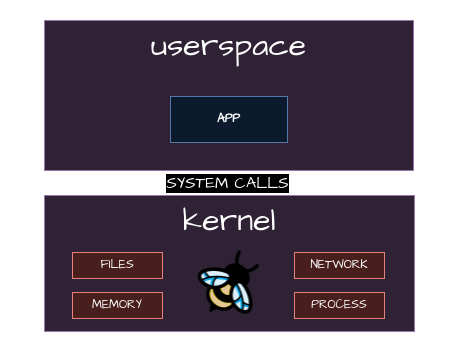

What is eBPF ?

extended Berkley Packet Filter

Look Ma’s, without sidecar

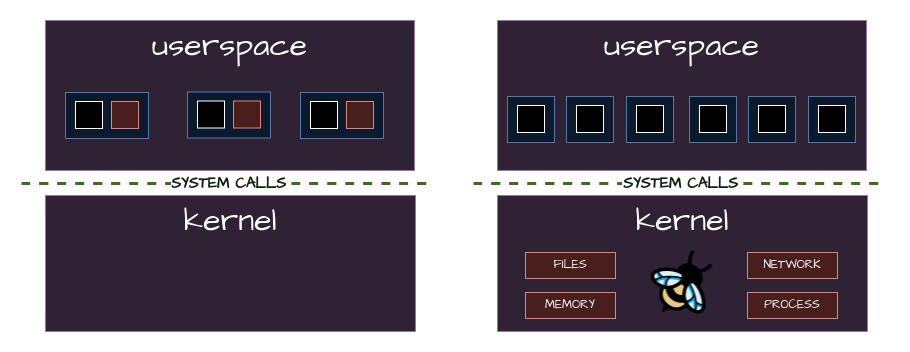

Sidecar vs eBPF

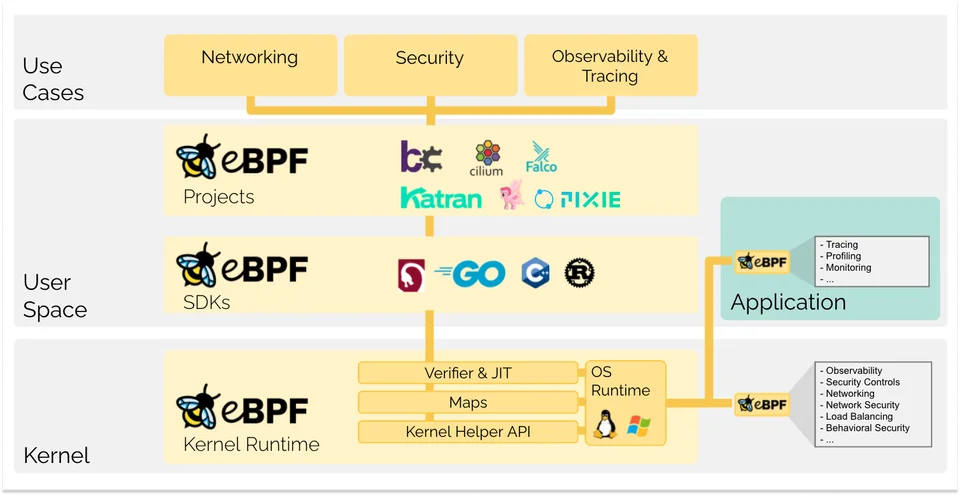

eBPF Architecture

Cilium eBPF with envoy ?

eBPF Hook Overview

Security with ebpf

But what about Service Mesh ?

Traffic Management

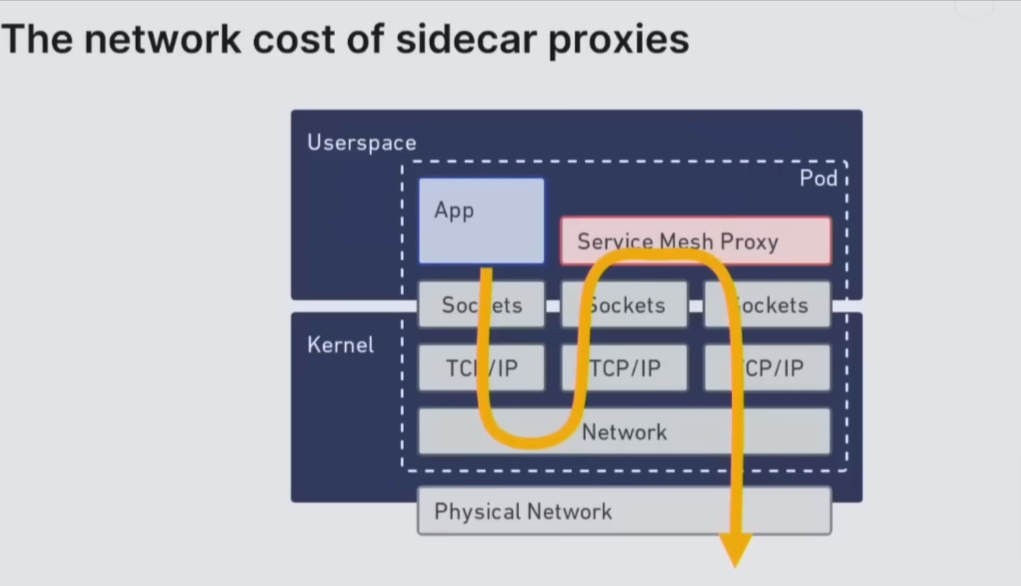

The network cost of sidecar proxies

Without sidecars

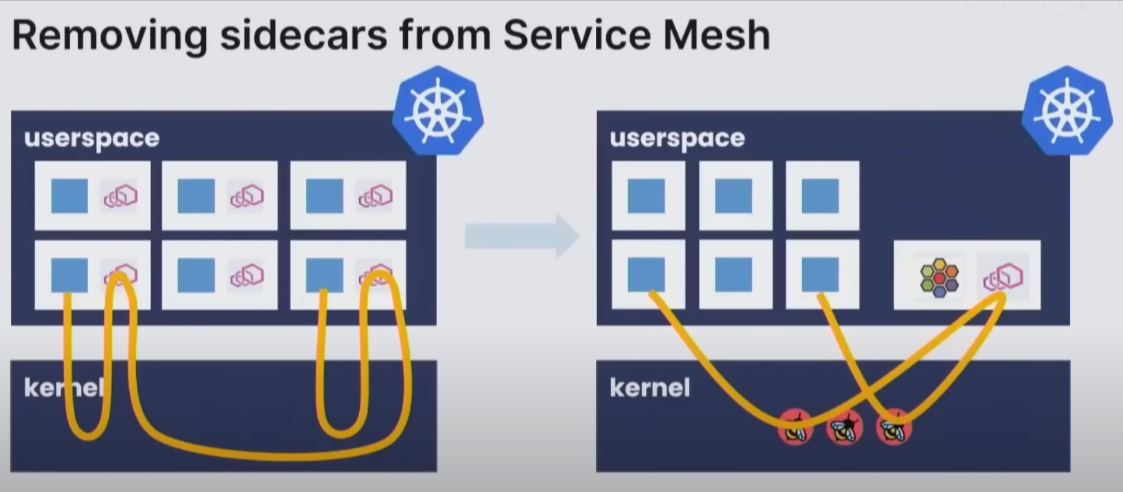

Removing sidecars from Service Mesh

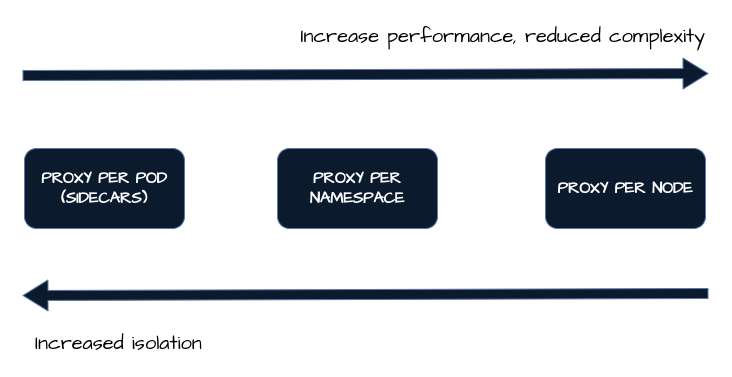

Evolution ? Not exactly, yet

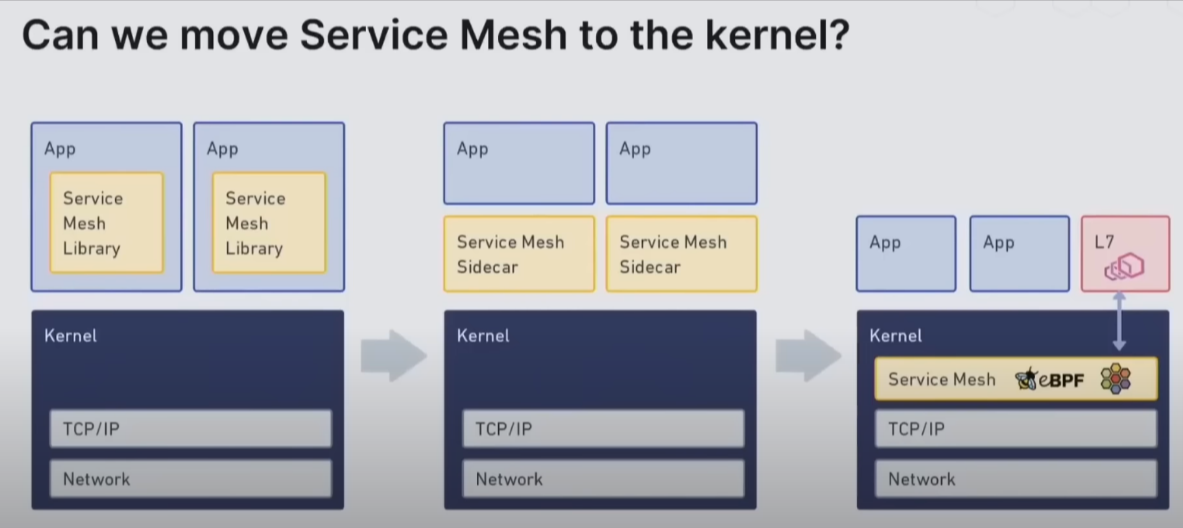

Can We move Service Mesh to the Kernel ? Kinda off…

Tradeoffs

What about Istio ?

Security Overview

Istio Security

The Istio security features provide strong identity, powerful policy, transparent TLS encryption, and authentication, authorization and audit (AAA) tools to protect your services and data.

Goals of Istio security

Security by default: no changes needed to application code and infrastructure
Defense in depth: integrate with existing security systems to provide multiple layers of defense
Zero-trust network: build security solutions on distrusted networks

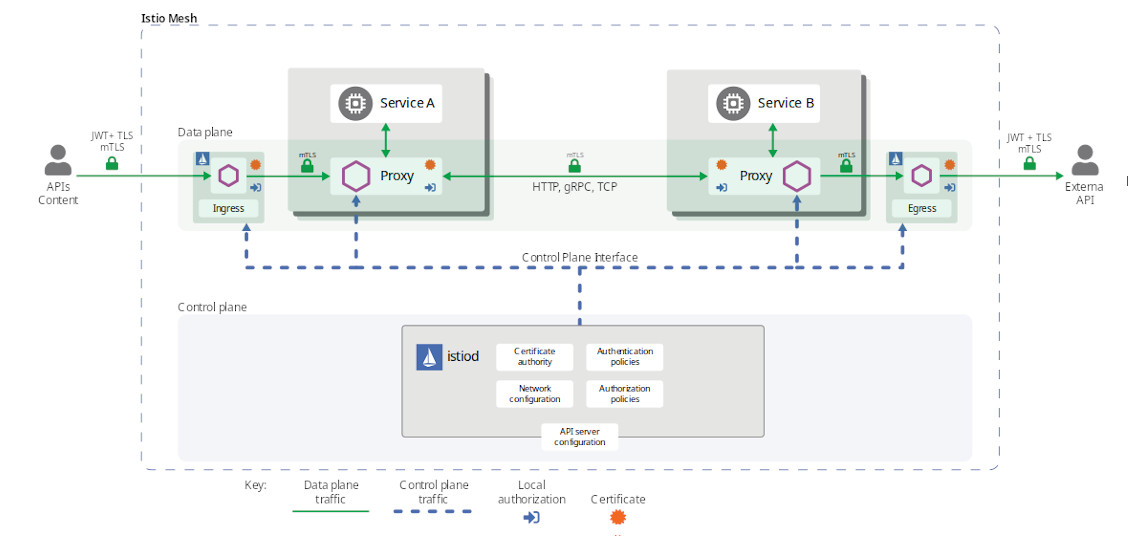

Istio Architecture

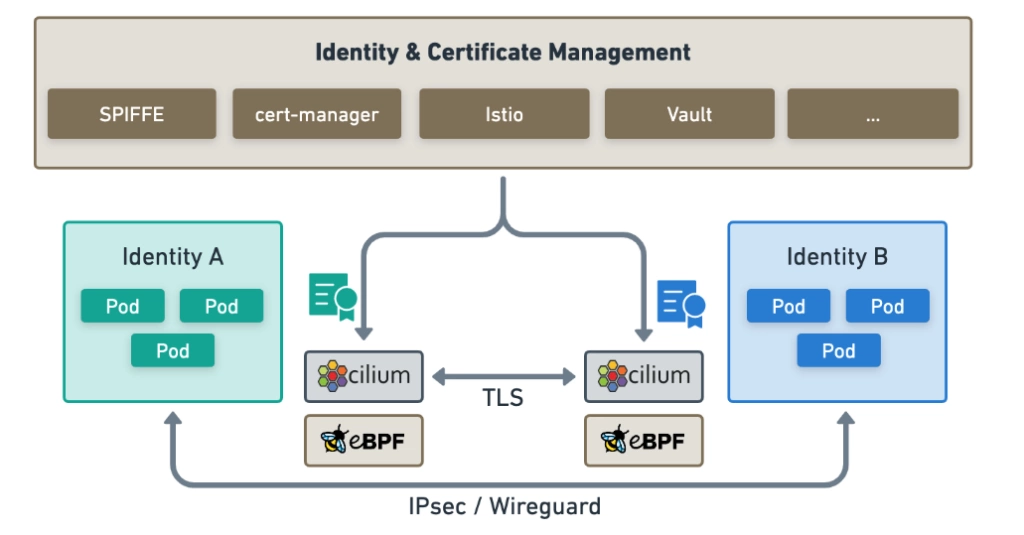

Identity And Certificate Management

Identity Provisioning Workflow

Authentication Architecture

Policy

PeerAuthentication

apiVersion: security.istio.io/v1beta1
kind: PeerAuthentication
metadata:
  name: default
  namespace: foo
spec:
  mtls:
    mode: PERMISSIVE

---

apiVersion: security.istio.io/v1beta1
kind: PeerAuthentication
metadata:
  name: default
  namespace: foo
spec:
  selector:
    matchLabels:
      app: finance
  mtls:
    mode: STRICT

Authorization Architecture

Policy

AuthorizationPolicy

apiVersion: security.istio.io/v1beta1
kind: AuthorizationPolicy
metadata:
 name: httpbin
 namespace: foo
spec:
 action: ALLOW
 rules:
 - from:
   - source:
       principals: ["cluster.local/ns/default/sa/sleep"]
   - source:
       namespaces: ["test"]
   to:
   - operation:
       methods: ["GET"]
       paths: ["/info*"]
   - operation:
       methods: ["POST"]
       paths: ["/data"]
   when:
   - key: request.auth.claims[iss]
     values: ["https://accounts.google.com"]

Routes with VirtualService

Public routes & Private Routes

apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
  name: reviews-route
spec:
  hosts:
  - reviews.prod.svc.cluster.local
  http:
  - name: "reviews-v2-routes"
    match:
    - uri:
        prefix: "/wpcatalog"
    - uri:
        prefix: "/consumercatalog"
    rewrite:
      uri: "/newcatalog"
    route:
    - destination:
        host: reviews.prod.svc.cluster.local
        subset: v2
  - name: "reviews-v1-route"
    route:
    - destination:
        host: reviews.prod.svc.cluster.local
        subset: v1

Cors

apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
  name: ratings-route
spec:
  hosts:
  - ratings.prod.svc.cluster.local
  http:
  - route:
    - destination:
        host: ratings.prod.svc.cluster.local
        subset: v1
    corsPolicy:
      allowOrigins:
      - exact: https://example.com
      allowMethods:
      - POST
      - GET
      allowCredentials: false
      allowHeaders:
      - X-Foo-Bar
      maxAge: "24h"

Extending functionality with WASM

WasmPlugins provides a mechanism to extend the functionality provided by the Istio proxy through WebAssembly filters.

apiVersion: extensions.istio.io/v1alpha1
kind: WasmPlugin
metadata:
  name: openid-connect
  namespace: istio-ingress
spec:
  selector:
    matchLabels:
      istio: ingressgateway
  url: file:///opt/filters/openid.wasm
  sha256: 1ef0c9a92b0420cf25f7fe5d481b231464bc88f486ca3b9c83ed5cc21d2f6210
  phase: AUTHN
  pluginConfig:
    openid_server: authn
    openid_realm: ingress

SPIFFE, the Secure Production Identity Framework For Everyone, provides a secure identity, in the form of a specially crafted X.509 certificate, to every workload in a modern production environment.

SPIFFE removes the need for application-level authentication and complex network-level ACL configuration.

What is SPIRE?

SPIRE, the SPIFFE Runtime Environment, is an extensible system that implements the principles embodied in the SPIFFE standards. SPIRE manages platform and workload attestation, provides an API for controlling attestation policies, and coordinates certificate issuance and rotation.

All powered by MTLS

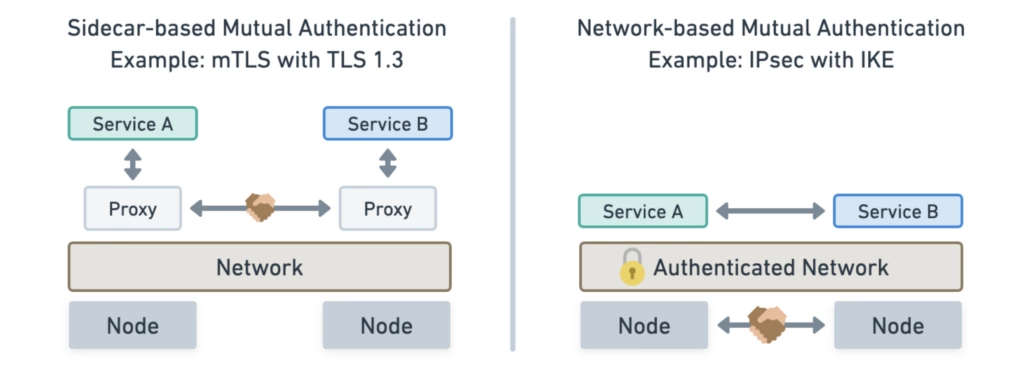

Session VS Network based authentication

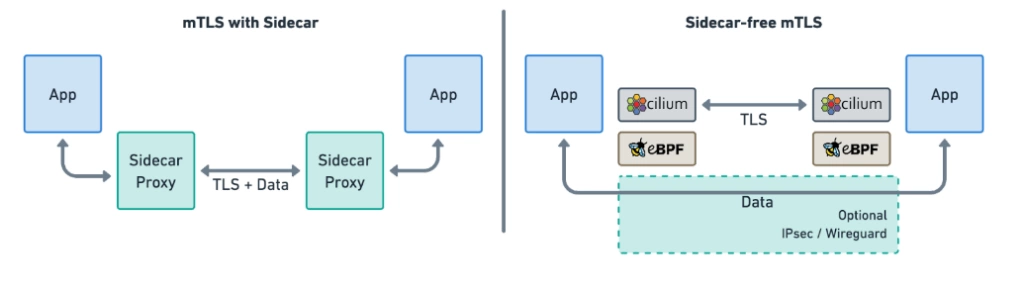

With Sidecar VS Sidecarless

Envoy with curiefense

Curiefense is an API-first, DevOps oriented web-defense HTTP-Filter adapter for Envoy and NGINX. It provides multiple security technologies (WAF, application-layer DDoS protection, bot management, and more) along with real-time traffic monitoring and transparency.

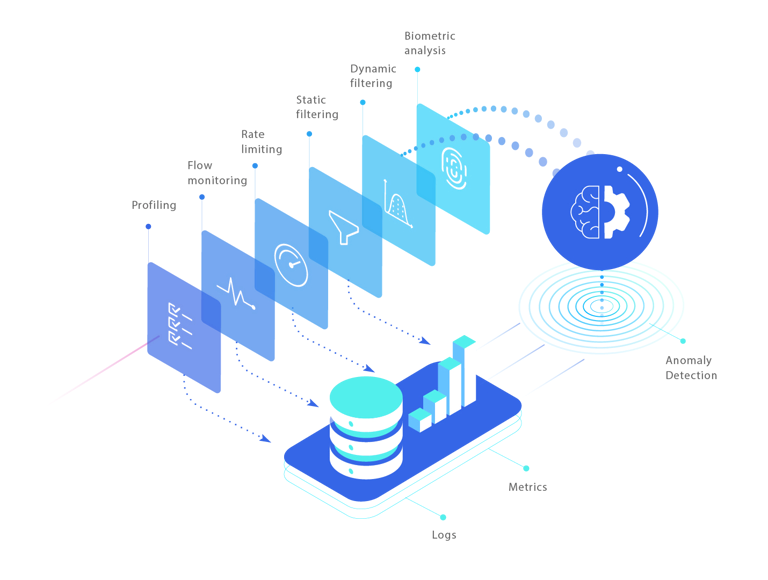

Curiefense architecture

Demo Time

Show diagrams (next slide)
Show code
Show console commands
Show kiali, grafana and jaeger
Show istio documentation

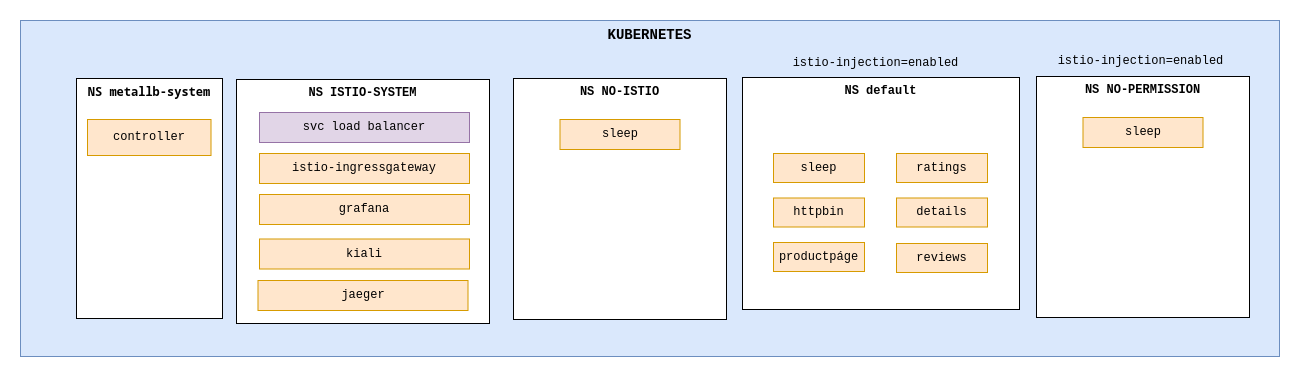

Kubernetes Part

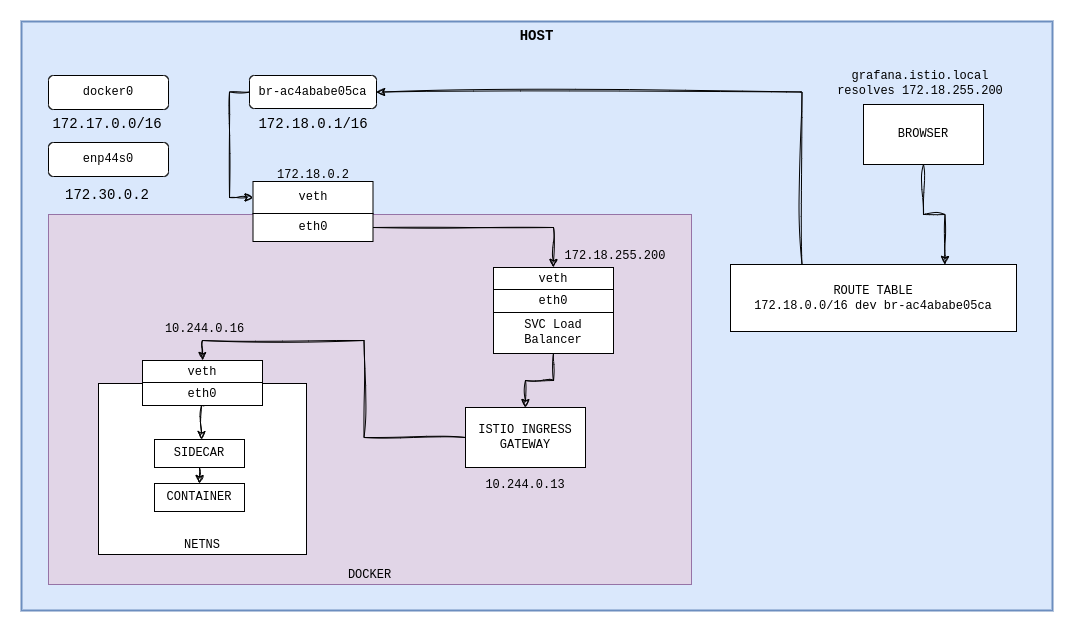

Network Part

References

https://istio.io/latest/docs/concepts/security
